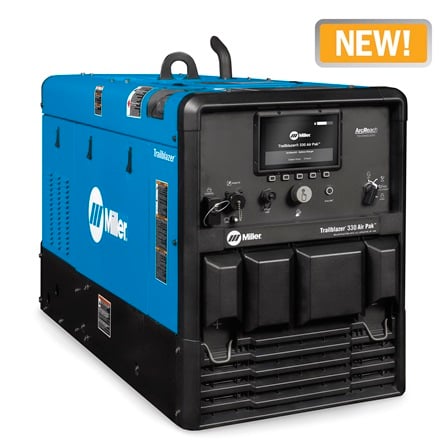

Miller Trailblazer 330 Air Pak w/Excel Power, Battery Charge/Crank Assist
$19,186.00
Discover the Miller Trailblazer 330 Air Pak, a powerful 330 amp welder and 12,000-watt generator with built-in air compressor. Enjoy features like AutoSet technology, ArcReach compatibility, and exceptional fuel efficiency, all designed for optimal performance on any job site. Perfect for professionals seeking reliable and versatile welding solutions.
Description
Miller Trailblazer 330 Air Pak w/Excel Power, Battery Charge/Crank Assist – 907836
Product Overview
The Miller Trailblazer 330 Air Pak combines powerful features in a compact design. This 330 amp DC engine-driven welder also functions as a 12,000-watt AC generator, complete with a built-in 30 CFM air compressor. Designed for efficiency, the rotary screw compressor operates at 80-160 PSIG at a 100% duty cycle without a storage tank and allows for four easy access points for compressed air.
Ideal for running various impact wrenches, even at idle, this versatile machine is equipped with ArcReach® technology, enabling direct communication with Miller wire feeders and remote controls via welding leads, eliminating the need for costly cables.
With AutoSet™ technology, users can easily access pre-set welding parameters based on material thickness and welding methods, while still allowing for manual adjustments.
Powered by a robust Kohler® 27 HP CH749 gasoline engine, the Trailblazer features Auto-Speed™ technology, which adjusts engine speed based on welding load for improved fuel efficiency and quieter operation. It also offers Excel™ Power, delivering 2400 watts of auxiliary power at idle, reducing noise on job sites.
The unit includes battery charge/crank assist, capable of providing up to 150 amps for battery charging and 300 amps for cold-starting engines.
Superior Welding Performance
The Trailblazer® 330 delivers X-Ray quality welds across multiple processes, including:
- Stick (SMAW)
- MIG (GMAW)
- Flux Cored (FCAW)
- DC TIG (GTAW)
- Pulsed DC TIG (GTAW-P)
- Air Carbon Arc Cutting and Gouging
- Air Plasma Cutting (with optional Spectrum models)
Applications:
- Industrial Projects
- Fabrication
- Maintenance and Repair
- Structural Steel Work
- Piping
- Sheet Metal Work
Key Features:
- Industrial Rotary-Screw Air Compressor: Produces 30 CFM of air at a 100% duty cycle with no storage tank. Guaranteed by Miller for three years.
- ArcReach® Technology: Simplifies setup by eliminating control cables.
- Dynamic Dig™ Technology: Provides ultra-adaptive arc control for consistent performance.
- Lift-Arc™ DC TIG with Quiet Pulse™: Ensures precise control with minimal noise during TIG welding.
- Direct Spool Gun Connection: Easily connect Miller Spoolmatic® series or Spoolmate™ 200 spool guns.
- Smart-Cor™ Technology: Offers independent power for welding and generator functions.
- Auto-Speed™ Technology: Optimizes engine speed for maximum fuel efficiency.
- Excel™ Power: Delivers clean generator power while welding or idling.
- Battery Charge/Crank Assist: Keeps your equipment operational, reducing downtime.
Specifications
Product Literature
Processes
General Specifications
| Title | Trailblazer® 330 Air Pak™ w/Excel™ Power, Battery Charge/Crank Assist |
|---|---|
| Industries Interests | Construction and Fabrication Heavy Equipment |
| Amperage | 20 A – 330 A |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Rated Carbon Diameter | 1/4 in (6.4 mm) |
| Current Type | DC |
| Max Open Circuit Voltage | 107 VDC |
| Portability | Lift Eye (Standard) |
| Engine Brand | Kohler |
| Engine Idle Speed | 2400 RPM |
| Engine Weld Speed | Advanced Auto-Speed(TM) technology: Varies engine speed from 2,400-3,600 rpm to match weld output |
| Fuel Tank Size | 11 Gallon |
| Fuel Type | Gasoline |
| Horsepower | 27 hp |
| Weld Output | CC/CV |
| Rated Output | CC/DC Stick/TIG 314 A at 32.5 V, 100% duty cycle, CV/DC MIG/FCAW 330 A at 30.5 V, 100% duty cycle |
| Single Phase Auxiliary Continuous Power | 10500 W |
| Single Phase Auxiliary Peak Power | 12000 W |
| Sound Rating | 69.5 dB @ 150 amps and 75.3 dB @ max weld |
| Compressor Brand | Rotary-Screw Compressor |
| Compressor Free Air Delivery | 30 cfm (0.85 m3 /min.) at 3,600 rpm / 28 cfm (0.79 m3 /min.) at 3,000 rpm |
| Compressor Working Pressure | 80-160 psig |
| Compressor Duty Cycle | 100% |
| Compressor Automatic Shutdown | High pressure (160 psi) |
| Applications | Aluminum Welding Fabrication Field Welding Industrial Welding Mobile Fabrication & MRO Structural Welding |
| Battery Charge | 10-150 A |
| Crank Assist | 300 A, 12/24 V |
| Warranty | 3 Years |
