Miller Multimatic 215 Multiprocess Welder
$2,199.00
The Millermatic 215 multiprocess welder is an easy-to-use and versatile MIG, Stick and DC TIG welder that helps build skills. Color screen featuring Auto-Set™ Elite. This all-in-one welder connects to 120 or 240 volt input power. Welds up to 3/8” mild steel.
Description
Miller Multimatic 215 Multiprocess Welder 907693
The Miller Multimatic 215 multi-process welder is a 230 amp, portable welder that is capable of MIG, Stick and DC TIG welding. It comes standard with a color LCD screen and features Miller’s Auto-Set™ Elite. Auto-Set™ Elite sets MIG, Stick and TIG welding parameters automatically, all you need to do is enter metal thickness and welding wire or tungsten electrode diameter. It also allows you to fine tune weld settings manually to suit your individual preferences.
The Multimatic 215 runs on either 120 volt or 240 volt input power, using Miller’s exclusive multi-voltage plug (MVP™) and weighs only 38 pounds. It comes complete with MIG welding gun, stick electrode holder and ground clamp. TIG welding kit is sold separately.
Multiprocess Capabilities

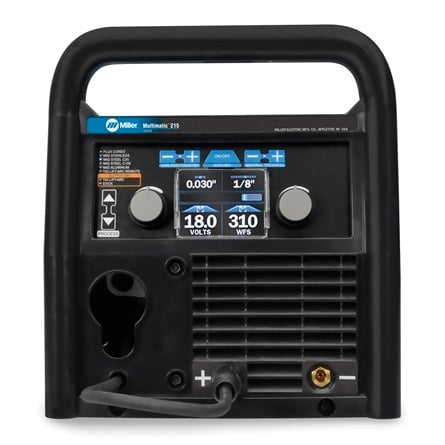

Color LCD with Auto-Set™ Elite
Inverter Technology
Two Gas Connections
Auto Spool Gun Detect™
Multi-voltage plug (MVP™)
Angled Drive System with Quick Select™ Drive Roll
Smooth-Start™
Fan-On-Demand™

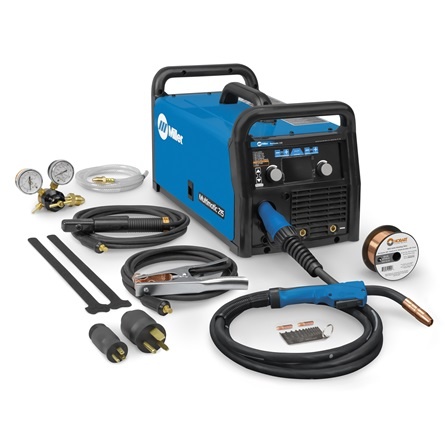

WHAT’S INCLUDED
Multimatic® 215
Material thickness gauge #229895
6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240V
10 ft (3 m) MDX™-100 MIG gun
13 ft (4 m) cable electrode holder and 25 mm Dinse-style connector
10 ft (3 m) work cable with clamp and 25 mm Dinse-style connector
Argon and AR/CO2 mix regulator/flow gauge with hose
Spool of Hobart® .030 in (0.8 mm) solid wire
Two contact tips for .030 in (0.8 mm) wire
Quick Select™ drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux cored wire
Hook-and-loop cord wraps
WHAT’S INCLUDED
Multimatic® 215
Material thickness gauge #229895
6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240V
10 ft (3 m) MDX™-100 MIG gun
13 ft (4 m) cable electrode holder and 25 mm Dinse-style connector
10 ft (3 m) work cable with clamp and 25 mm Dinse-style connector
Argon and AR/CO2 mix regulator/flow gauge with hose
Spool of Hobart® .030 in (0.8 mm) solid wire
Two contact tips for .030 in (0.8 mm) wire
Quick Select™ drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux cored wire
Hook-and-loop cord wraps
PRODUCT LITERATURE
Specifications:
PROCESSES
GENERAL SPECIFICATIONS
| Title | Multimatic® 215 Multiprocess Welder |
|---|---|
| Industries Interests | Racing Farm and Ranch Welding Education and Training |
| Amperage | 20 A – 230 A |
| Material Thickness | Mild Steel 24 ga. – 3/8 in. (MIG) Mild Steel 24 ga. -3/16 in. (TIG) Mild Steel 16 ga. – 3/8 in. (Stick) Aluminum 18 ga. – 3/8 in (MIG) |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Input Voltage | 110/115/120 V 220/230/240 V |
| Input Phase | 1-Phase |
| Input Hz | 50/60 Hz |
| Current Type | DC |
| Max Open Circuit Voltage | 58 VDC |
| Wire Feed Speed | 1.8 m/min – 10.8 m/min 70 IPM – 425 IPM |
| Portability | Handle(s) Running Gear / Cart (Optional) |
| Weld Output | CC / CV |
| Applications | Welding Projects |
| Net Width | 11.25 in |
| Net Height | 12.5 in |
| Net Length | 20.5 in |
| Net Weight | 38 lbs |
| Warranty | 3 Years |
CERTIFICATIONS
