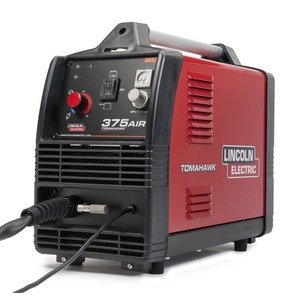

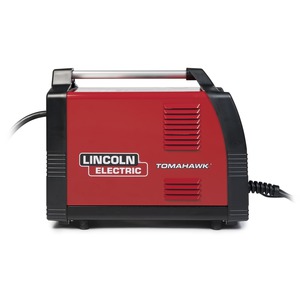

Lincoln Tomahawk® 375 Air Plasma Cutter
$1,937.00
Top Features
- Ultimate Portability – Internal air compressor enables operation in environments where external compressed air is not available.
- Continuous Output Control – Focus the arc for different material thickness.
- Touch Start System – Reliable plasma arc initiation without high frequency.
- Rapid Arc Restrike – Fast cutting through gaps, even expanded metal.
- Front Panel Purge Control – Makes it easy to set the air flow rate without initiating the plasma arc.
Input Power
208/230/1/60
Processes
Plasma cutting for mild steel, stainless steel, aluminum, brass, copper
Description
[vc_row gap=”” style=”classic” shape=”rounded” color=”grey” no_fill_content_area=”” spacing=”1″ tab_position=”left” alignment=”left” controls_size=”” autoplay=”none” active_section=”1″ pagination_style=”” pagination_color=”grey” title=””][vc_column][vc_tta_tour active_section=”1″][vc_tta_section title=”Features and Benefits” tab_id=”1609176640595-f3c3adf0-4f35″][vc_column_text]Plasma Cutting – Anywhere, Anytime
The Tomahawk® 375 Air plasma cutting system arrives ready to go for fast and precise cutting. With the 375 Air, forget the grinder – simply pick up the torch and cut in seconds.
- Ultimate Portability – Internal air compressor enables operation in environments where external compressed air is not available.
- Continuous Output Control – Focus the arc for different material thickness.
- Touch Start System – Reliable plasma arc initiation without high frequency.
- Rapid Arc Restrike – Fast cutting through gaps, even expanded metal.
- Front Panel Purge Control – Makes it easy to set the air flow rate without initiating the plasma arc.
- Cool Operation, Long Consumable Life – New electrode and nozzle design save you money in the long run.
- Added Safety – Our Parts-in-Place system detects correct installation of consumables and torch.
- Engine Drive Compatible – Select a Lincoln Electric Ranger® or Vantage® to power your Tomahawk® in remote locations.
[/vc_column_text][/vc_tta_section][vc_tta_section title=”Documents” tab_id=”1609176640612-e3c5ba41-4430″][vc_column_text]Tomahawk 375 Air Product Info[/vc_column_text][/vc_tta_section][vc_tta_section title=”Specifications” tab_id=”1609176971322-16e4b021-5f7a”][vc_column_text]
| INPUT POWER | 208/230/1/60 |
| RATED OUTPUT | 13A@85.2V 100% 18A@87.2V 60% |
| INPUT CURRENT | 21.7A |
| OUTPUT RANGE | 10-25A |
| DIMENSIONS (H X W X D) | 15.2 in x 8.5 in x 18.9 in (385 mm x 215 mm x 480 mm) |
| NET WEIGHT | 40.00 (18.14 kg) |
| PILOT CURRENT | 17A |
| AIR PRESSURE REQUIRED: | 80 – 110 psi (6 -7.5 Bar) |
| AIR FLOW RATE | 70 psi @ 125 – 200 SCFH 5 Bar @ 80 Liters / min. |

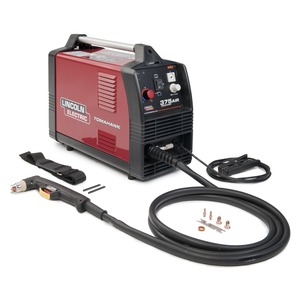

[/vc_column_text][/vc_tta_section][vc_tta_section title=”What’s Included” tab_id=”1609176992687-ff888811-27b6″][vc_column_text]
- Internal air compressor (external air connection also standard)
- LC25 hand torch and 10 ft. (3 m) cable with electrode, nozzle 25A, swirl ring, retaining cap, drag spacer
- Air regulator and pressure gauge
- Internal water separator
- Work clamp and cable
- Spare consumables include (2) electrodes, (2) nozzles 25A, (1) swirl ring
- Shoulder strap
- Input power cord
[/vc_column_text][/vc_tta_section][/vc_tta_tour][/vc_column][/vc_row]
