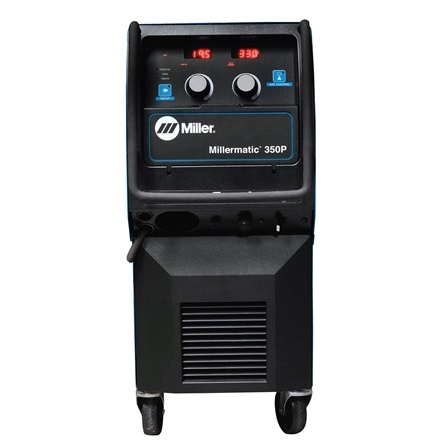

Millermatic 350P 200/230/460V 60Hz 1/3Ph (Discontinued)
$7,199.00
First single- or three-phase power Millermatic that welds material from 22 gauge to 1/2 in thick in a single pass. Perfect for fabrication, manufacturing, maintenance and repair.
Description
[vc_row][vc_column][vc_tta_tour active_section=”1″][vc_tta_section title=”Features and Benefits” tab_id=”1604679956767-f4ddfaaa-ce9e940f-11e16ab7-90d9d04c-cb38″][vc_row_inner][vc_column_inner width=”1/3″][vc_video link=”https://youtu.be/LZzAcXapok4″][/vc_column_inner][vc_column_inner width=”2/3″][vc_column_text]Pulsed-MIG Advantage
- Whether welding aluminum, steel or stainless steel, improving productivity by 30, 50 or 100% and saving tens of thousands of dollars are typical results when switching to Pulsed-MIG with the Millermatic 350P.
[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_separator css=”.vc_custom_1604941865849”][vc_row_inner][vc_column_inner width=”1/3″][vc_single_image image=”5545″ img_size=”full” alignment=”center”][/vc_column_inner][vc_column_inner width=”2/3″][vc_column_text]SharpArc
- Optimizes the size and shape of the arc cone, bead width and appearance and puddle fluidity.
[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_separator css=”.vc_custom_1604941865849”][vc_row_inner][vc_column_inner width=”1/3″][vc_single_image image=”5544″ img_size=”full” alignment=”center”][/vc_column_inner][vc_column_inner width=”2/3″][vc_column_text]Millermatic 350P Autobody Aluminum Package
- The automotive industry is trending to aluminum frames and body panels to improve performance and fuel mileage. Welding thin gauge aluminum creates problems with warping, distortion and burn through. The Millermatic 350P Autobody Aluminum Package makes it easy to setup, use and make quality aluminum repairs.
[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_separator css=”.vc_custom_1604941865849”][vc_row_inner][vc_column_inner width=”1/3″][vc_single_image image=”5546″ img_size=”full” alignment=”center”][/vc_column_inner][vc_column_inner width=”2/3″][vc_column_text]Aluminum Pulse Hot Start
- Automatically provides more arc power to eliminate a “cold start” that is inherent with aluminum starts.
[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_separator css=”.vc_custom_1604941865849”][vc_row_inner][vc_column_inner width=”1/3″][vc_video link=”https://youtu.be/rSKfPn986Sw”][/vc_column_inner][vc_column_inner width=”2/3″][vc_column_text]Fan-On-Demand
- The Fan-On-Demand Cooling system only operates when needed, reducing power consumption and keeping internal components cleaner.
[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_separator css=”.vc_custom_1604941865849”][vc_row_inner][vc_column_inner width=”1/3″][vc_video link=”https://youtu.be/ulojJnYMMhU”][/vc_column_inner][vc_column_inner width=”2/3″][vc_column_text]Line Voltage Compensation (LVC)
- Line Voltage Compensation keeps output of the power source constant regardless of fluctuation in input power ± 10%.
[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_separator css=”.vc_custom_1604941865849”][vc_row_inner][vc_column_inner width=”1/3″][vc_video link=”https://youtu.be/s54bfUR0aDY”][/vc_column_inner][vc_column_inner width=”2/3″][vc_column_text]Gun-On-Demand
- Miller’s Gun-On-Demand feature allows you to use either a standard MIG gun, a Spoolmatic 15/30A spool gun or any other Miller push-pull gun without flipping a switch. The machine senses which gun you are using when you pull the trigger.
[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_column_text][/vc_column_text][/vc_tta_section][vc_tta_section title=”Documents” tab_id=”1604679956790-193a91fd-6cd9940f-11e16ab7-90d9d04c-cb38″][vc_column_text]Spec Sheet (ENG)
Spec Sheet (ESP)[/vc_column_text][vc_column_text][/vc_column_text][/vc_tta_section][vc_tta_section title=”Specifications” tab_id=”1604679959828-9ce4c8f3-67ce940f-11e16ab7-90d9d04c-cb38″][vc_column_text]
PROCESSES
| Title | Millermatic 350P 200/230/460V 60Hz 1/3Ph |
|---|---|
| Industries Interests | Racing / Customizing / Restoring Construction Manufacturing Boat / Yacht DIY / Home Hobbyist Shipbuilding |
| Material Thickness | Mild Steel 24 ga. (0.8 mm) – 1/2 in. (13 mm) Aluminum 18 ga. (1.2 mm) – 3/8 in. (9.5 mm) |
| Weldable Metals | Steel Stainless Steel Aluminum |
| Input Voltage | 208 V 220/230/240 V 460/480 V |
| Input Phase | 1- and 3-Phase |
| Input Hz | 60 Hz |
| Input Amperage | 61 A |
| Current Type | DC |
| Rated Output | 300 Amps at 32 VDC, 60% duty cycle, 1- or 3-Phase |
| Max Open Circuit Voltage | 72 VDC |
| Amperage Range | 25 A – 400 A |
| Wire Feed Speed | 1.3 m/min – 17.8 m/min 50 IPM – 700 IPM |
| Wire Diameter | Solid Steel 0.023 in 0.045 in Solid Steel 0.6 mm 1.2 mm Stainless 0.03 in 0.045 in Stainless 0.8 mm 1.2 mm Aluminum 0.035 in 0.047 in Aluminum 0.9 mm 1.2 mm Metal-Core 0.035 in 0.052 in Metal-Core 0.9 mm 1.3 mm Flux Cored 0.03 in 0.052 in Flux Cored 0.8 mm 1.3 mm |
| Spool Size | 12 in (305 mm) |
| Portability | Running Gear / Cart (Standard) |
| Weld Output | CV |
| Net Width | 19 in |
| Net Height | 34 in |
| Net Length | 41 in |
| Net Weight | 181 lbs |
| Warranty | 3 Years Miller’s True Blue Warranty |
CERTIFICATIONS
[/vc_column_text][/vc_tta_section][vc_tta_section title=”What’s Included” tab_id=”1604682001647-2a0a53e0-624c940f-11e16ab7-90d9d04c-cb38″][vc_column_text]
- Millermatic 350P power source
- Bernard® Q300 15 ft (4.6 m) MIG gun with extra Centerfire™ contact tips
- 10 ft (3 m) work cable with clamp
- 10 ft (3 m) Industrial power cord (without plug) for single- or three-phase
- Factory-installed gas solenoid
- Argon mix regulator/flow meter
- Factory-installed, low-mounted running gear/cylinder rack
- .035/.045 in (0.9/1.2 mm) reversible V-groove drive rolls (order U-groove drive roll kits for aluminum welding)
- Extra Contact tips
NOT INCLUDED
- Shielding gas (for welding with solid wire [GMAW])
- Flux cored drive rolls (for welding with flux cored wire [FCAW])
- Welding wire
- Personal safety products (helmet, gloves)
- Your local welding distributor can provide shielding gas, additional welding wire and a full product offering.
[/vc_column_text][/vc_tta_section][/vc_tta_tour][/vc_column][/vc_row]
