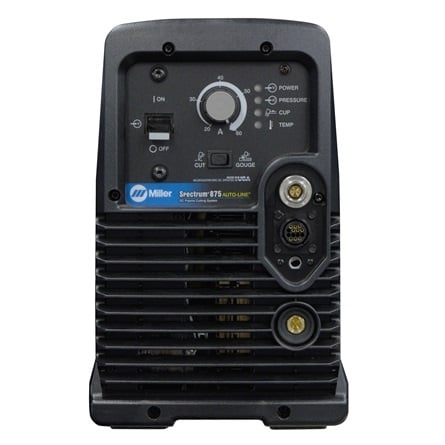

Miller Spectrum 875 Auto-Line Plasma Cutter with XT60 Long-Body Torch with 50-ft. Cable

Miller Spectrum 875 Auto-Line Plasma Cutter with XT60 Long-Body Torch with 50-ft. Cable
Miller Spectrum 875 Auto-Line Plasma Cutter with XT60 Long-Body Torch with 50-ft. Cable - Image 2

Miller Spectrum 875 Auto-Line Plasma Cutter with XT60 Long-Body Torch with 50-ft. Cable

$4,985.00

Compact, 54 lb, multi-voltage (208-575V 1/3PH) unit cuts up to 7/8” mild steel.

SKU: 907584004 Category:

Description

[vc_row gap=”” style=”classic” shape=”rounded” color=”grey” no_fill_content_area=”” spacing=”1″ tab_position=”left” alignment=”left” controls_size=”” autoplay=”none” active_section=”1″ pagination_style=”” pagination_color=”grey” title=””][vc_column][vc_tta_tour active_section=”1″][vc_tta_section title=”Features” tab_id=”1609186055595-6b86ae56-4d6d”][vc_column_text]

Rated Cutting Capacity
The rated cutting capacity is based on traveling approximately 15 inches per minute to achieve a steady, precise cut. This is the key rating that should meet or exceed your typical cutting thickness requirements.

Automatic Air Regulation
For end user convenience, the unit has no pressure gauge or manual regulator knob. The unit automatically adjusts the air pressure to the torch for optimum cutting and gouging. No adjustments necessary.

Ultra-Quick Connect™ Torch
Torch and work cable offer the fastest plasma torch and work cable connection and removal in the industry.

Auto-Line™
Automatically connects the 875 Auto-Line to any primary input voltage from 208 – 575 volts single – or three-phase, 50 or 60 Hz.

Wind Tunnel Technology™ and Fan-On-Demand™
Wind Tunnel Technology prevents abrasive dust and particles from damaging internal components. Fan-On-Demand cooling system operates only when needed. In dirty or dusty environments, this feature reduces the amount of airborne dust/dirt pulled through the unit

Can Be Powered by Miller Engine Drive/Generator
Use with generator power at or above 10 kW (e.g. Bobcat™) or equivalent competitive equipment.

CNC/Automation Cutting Capable
Factory ready CNC/Automation models are available in long or short body torches as well as retrofit kits to convert hand held machines to be capable of CNC/Automation cutting.

Auto-Refire™ Technology
Provides ultimate customer convenience by automatically controlling the pilot arc when cutting expanded metal or multiple pieces of metal. The pilot arc will switch in and out as fast as needed when cutting expanded metal and provides maximum power for cutting thicker metal—all automatically! No need for manual re-triggering which reduces user hand fatigue.

NOT INCLUDED

  • Power plug
  • Air source (compressor or bottled gas)
  • Personal safety products (safety glasses, gloves)

[/vc_column_text][/vc_tta_section][vc_tta_section title=”What´s Included” tab_id=”1609186055608-f7b3d4ea-9ae8″][vc_column_text]

  • Spectrum 875 Auto-Line
  • XT60M long-body machine torch with 50-ft. (15.2 m) cable. Includes a complete set of 60 A consumables.
  • Heavy-duty work clamp and flexible cable with quick connect
  • 10-ft. (3 m) power cord
  • Extra consumables

[/vc_column_text][/vc_tta_section][vc_tta_section title=”Specifications” tab_id=”1609186072685-879ca802-6e57″][vc_column_text]

PROCESSES

Plasma (PAC)

GENERAL SPECIFICATIONS

TitleSpectrum 875 Auto-Line Plasma Cutter with XT60 Long-Body Torch with 50-ft. Cable
Industries InterestsRacing / Customizing / Restoring

Construction

DIY / Home Hobbyist

Heavy Equipment Manufacturing

Infrastructure

Manufacturing

Shipbuilding

Boat / Yacht

High Purity Processing

Capability Gouging—
Rated Output at 104 Degrees Fahrenheit3-Phase: 208 V: 60 A at 140 VDC, 40% duty cycle; 230 – 380 V: 60 A at 140 VDC, 50% duty cycle; 380- 575 V: 60 A at 140 VDC, 60% duty cycle; 380-575 V: 50 A at 140 VDC, 100% duty cycle 1-Phase: 208 V: 60 A at 140 VDC, 40% duty cycle; 230 V: 60 A at 140 VDC, 50% duty cycle; 230 V: 50 A at 140 VDC, 100% duty cycle
Material ThicknessMild Steel 7/8 in.

Aluminum 5/8 in.

Stainless Steel 7/8 in.

Recommended Generator Power11000
Input Hz50/60 Hz
Input Amperage15 A
Metal Type

Stainless Steel Travel Speed – IPM15 IPM
Aluminum Travel Speed – IPM15 IPM
Mild Steel Travel Speed – IPM15 IPM
Net Width8.75 in
Net Height13.5 in
Net Length18.5 in
Net Weight54 lbs
Warranty3 Years

[/vc_column_text][vc_column_text][/vc_column_text][/vc_tta_section][vc_tta_section title=”Documents” tab_id=”1609186072230-fd9d3df4-a46b”][vc_column_text]Spec Sheet (ENG)[/vc_column_text][/vc_tta_section][/vc_tta_tour][/vc_column][/vc_row]
