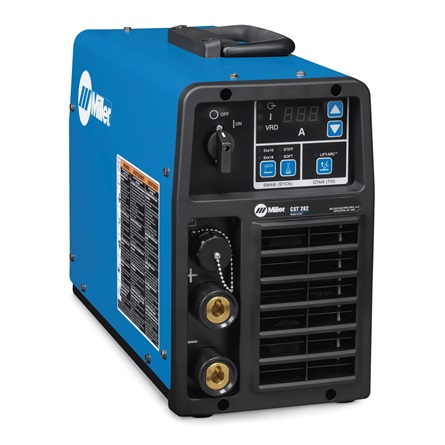

Miller CST™ 282 208-575V, Dinse Tig Welder
$4,601.00
Designed for welding pipe and plate in the construction industry — this compact, 35 pound, goes-anywhere welder delivers 280 amps of superior Stick and TIG performance with Auto-Line™ Technology to utilize nearly any source of primary power on the jobsite.
Description
Welds Stick/TIG
Superior stick arc performance with settings specifically designed for XX10 and XX18 electrodes and a stiff and soft setting for each. Whether welding pipe or in the flat there is a setting for each application.
Auto-Line™ Technology
Work in more places with Auto-Line technology which automatically calibrates the power source to operate properly when connected to any primary input voltage ranging from 208-575 volts, single- or three-phase, 50 or 60 Hz — with no manual linking required. Learn More
Portable
Weighing only 34.6 pounds, the CST 282 is easily moved around a jobsite for increased operator comfort and safety. It is 7 pounds (20%) lighter than the previous CST model.
Universal Connector System

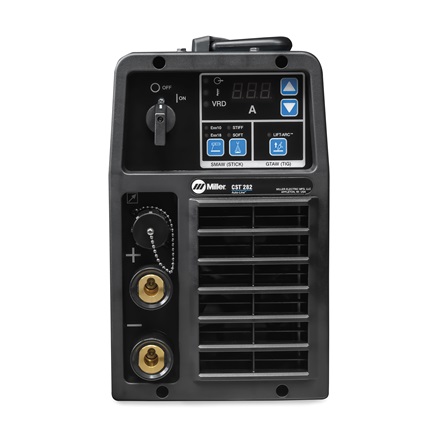

New Miller-exclusive universal output connector system can be used with either Tweco- or Dinse-style connectors. Welders can convert the machine from one connector style to another — without having to take the machine apart or deal with adapters.
Simple & Accurate Interface

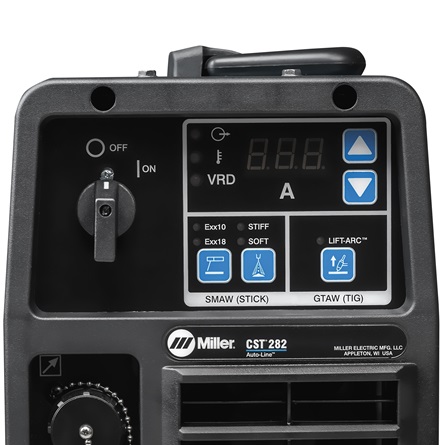

Digital meter and push-button controls for more precise setting when presetting or monitoring welding amperage.
Adaptive Hot Start™
Automatically makes starting stick electrodes easy without creating an inclusion.
Lift-Arc™
Lift-Arc™ provides arc starting that minimizes contamination of the electrode and without the use of high-frequency.
Voltage Reducing Device
VRD technology reduces output voltage when the operator isn’t welding, lowering the potential hazard from inadvertent contact with the electrode during non-welding pauses.
4 and 8 Pack Racks
Rack mountable for protection, storage, and transportation of multiple power sources while using a single primary power cable.
PRODUCT LITERATURE
PROCESSES
Stick (SMAW)
TIG DC (GTAW-DC)
GENERAL SPECIFICATIONS
| Title | CST™ 282 208-575V, Dinse |
|---|---|
| Industries Interests | Construction Infrastructure Shipbuilding Education / Training Maintenance and Repair – Field Operations Maintenance and Repair – In Plant Mechanical Contracting High Purity Processing |
| Weldable Metals | Specialty Metals Stainless Steel Steel |
| Input Voltage | 208 V 220/230/240 V 380/400/440 V 460/480 V 575 V |
| Input Phase | 1- and 3-Phase |
| Input Hz | 50/60 Hz |
| Current Type | DC |
| Rated Output | 280 A at 31.2 VDC, 35% duty cycle |
| Max Open Circuit Voltage | 103 VDC |
| Portability | Handle(s) |
| Weld Output | Stick: 30–280 A, TIG: 5–280 A |
| Net Width | 8 in |
| Net Height | 13.5 in |
| Net Length | 18.5 in |
| Net Weight | 34.6 lbs |
