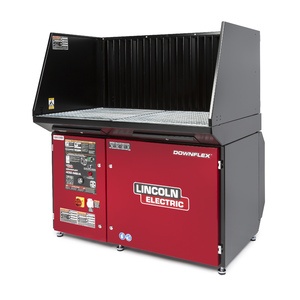

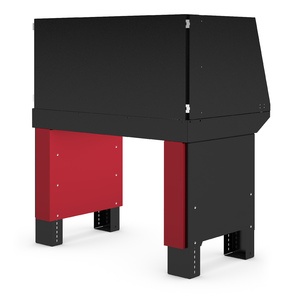

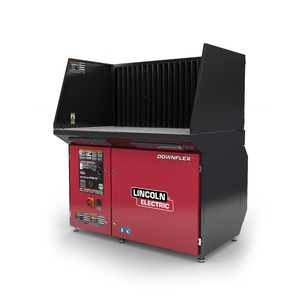

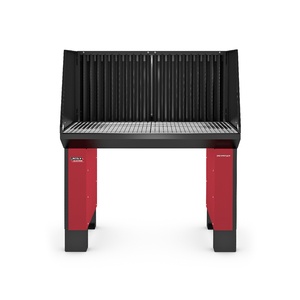

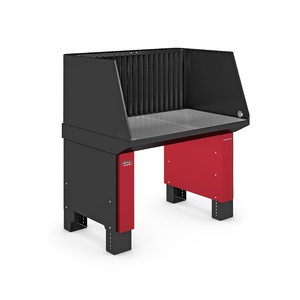

Lincoln Electric Downflex 100-Nf Weld Fume Downdraft Table
$4,592.00
Top Features
- Complete and affordable system
- Includes side panels, backdraft panels, dust collection tray and adjustable feet

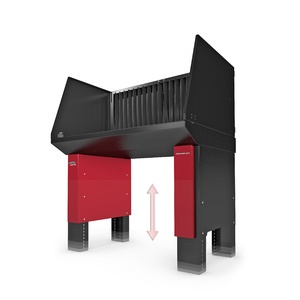

- Adjustable height from 31.5 – 37.4 in (800-950 mm)
- For standing or sitting work environments
- Durable, rugged design
Processes
Welding, Plasma Cutting (requires plasma cutting grid accessory), Grinding (not suitable for grinding aluminum, magnesium, or other explosive materials)
Description
The Downflex® 100-NF is a compact table that can be placed in multiple locations around a welding shop. This durable table allows the customer the ability to add their own customized extraction system.
- Complete and affordable system includes – side panels, backdraft panels, dust collection tray and adjustable feet
- Adjustable height from 31.5 – 37.4 in (800-950 mm) – for standing or sitting work environments
- Durable, rugged design
Specifications
| DIMENSIONS (H X W X D) | 61.9 in x 36 in x 54.1 in (1751 mm x 914.4 mm x 1374.4 mm) |
| NET WEIGHT | 388.00 (176.00 kg) |
| DUCTING SIZE CONNECTION: | 12 in (304.8 mm) |
| FILTER TYPE: | No Filtration |
| RECOMMENDED EXTRACTION CAPACITY m2/h: | 3000 |
| PRESSUE DROP Pa @ m2/h: | 315 @ 3200 450 @ 3000 w/ optional spark arrestors |
| WORKING HEIGHT ADJUSTMENT: | 31.5 – 37.4 in (800 – 950 mm) |
| MAXIMUM LOAD CAPACITY lb (kg): | 550 lb (249.4 kg) |
- Sturdy Welding Table
- Backdraft Panel
- Side Panels
- Dust Collection Tray
- Adjustable Feet
