Miller Millermatic 355 – MIG/Pulsed MIG Welder 208/240/460/575V

$8,288.00

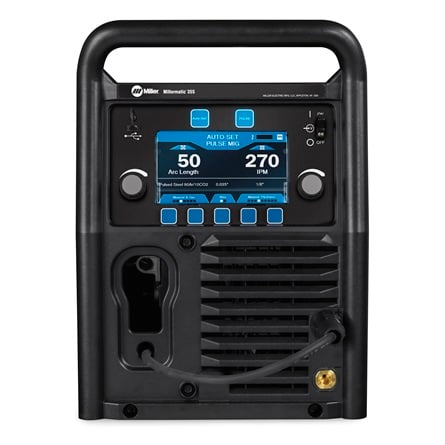

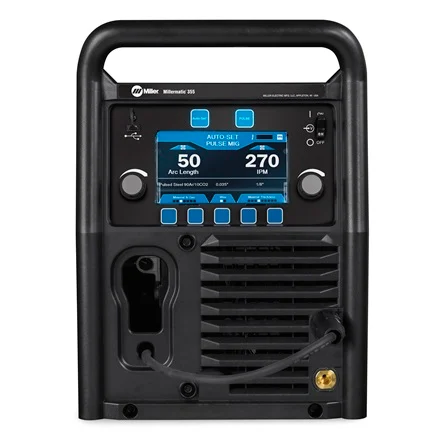

The all new Millermatic 355 Mig welder is an easy to use machine made to increase efficiency and productivity for manufacturing and fabrication users. 7″ Color LCD screen featuring Auto-Set™ Elite, Electronic Parameter chart, and Trigger Program Select. This all-in-one welder connects to any North American input power. Welds up to 1/2” aluminum, stainless and mild steel.

SKU: 907808 Category: MIG Welding (GMAW) Tags: mig welder, millermatic, millermatic 355

Description

Description

Miller Millermatic 355 – MIG/Pulsed MIG Welder 907808

Name: Miller Millermatic 355 – MIG/Pulsed MIG Welder 208/240/460/575V - BEST WENDING GENERATORS
SKU: 907808
Price: 8288.00 USD
Availability: InStock

The New Millermatic 355 Miller Mig Welder gives you power, precision, simplicity and versatility. It’s MIG and pulsed-MIG welds mild steel, aluminum or stainless in thicknesses from 22 gauge to 1/2 inch.

Advanced features make it easy for welders of any skill level to be productive and get great results. And because the Millermatic 355 operates on either single-phase or three-phase AC input power, it can work anywhere you do.

Quick Specs:

Processes

MIG (GMAW)
Pulsed MIG (GMAW-P)
Flux-cored (FCAW)

Input Power

3- or 1-phase, 208/240/460/575 V, 50/60 Hz

Rated Output

310 A at 29.5 V, 60% duty cycle

Amperage Range

20–400 A (3-phase and 1-phase 460/575 V), 20–350 A (1-phase, 208/240 V)

Net Weight

Machine only: 99 lb. (45 kg)
Machine with running gear: 163 lb. (74 kg)

Industrial Applications:

General manufacturing

General fabrication

Maintenance and repair

Bernard BTB Gun 300 A MIG gun with AccuLock™ S consumables

AccuLock liner loads from the front and locks at the front and back to insure proper alignment for flawless wire feed path. New rubber overmold and ball -and-socket handle design improves grip and reduces welder fatigue. New Industrial Bernard AccuLock™ S contact tips provide superior Spray and Pulsed MIG arc performance.

welding delivers higher quality

Lower heat input for less distortion on thin materials, less spatter minimizes post weld grinding and rework allowing more welding time. Perform welding applications that couldn’t be done in the past.

Optional EZ-Latch™ running gear

Operators no longer need to use lift truck to load machine and running gear into the truck. Latches secure machine to running gear. Simply loosen the latch retaining knob and rotate latches to disengage machine from running gear for easy portabilityAuto-Set™ Elite

offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.

Program mode allows easy save and recall of favorite weld settings.

Deliver more productivity, consistent quality by welders of all skill levels by using prequalified weld settings. Minimize supervisor need to intervene.

Trigger Program Select

Increases productivity by eliminating the need to go back to the machine to change weld settings. Simply tap gun trigger to select the program.

Generator Compatible

The Millermatic 355 will be able to operate and provide full output when powered by generators with 19000 Watt (19K) output or higher. Limited output will occur when used with smaller generators.

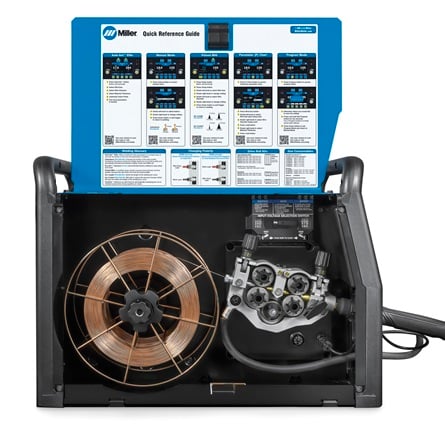

Input Voltage Selection Switch

Provides versatility to utilize any single- or three-phase North American power (208, 240, 460, 575 V). Location in the wire drive compartment provides the ability to manually switch input voltage. An error will display if wrong input selected.

Versatility

Capabilities include MIG, pulsed MIG and flux-cored welding.

Power source is warrantied for three years, parts and labor.Gun warrantied for 90 days, parts only

WHAT’S INCLUDED

Power source with 9 ft. (2.7 m) industrial power cord
15 ft. (4.5 m) 300-amp Bernard BTB MIG gun with Bernard AccuLock S consumables for .035/.045 in. (0.9/1.2 mm) wire
10 ft. (3 m) work cable with clamp and 50 mm Dinse-style connector
Flow gauge regulator and gas hose for argon or AR/CO2 mix
.035/.045 in. (0.9/1.2 mm) reversible drive rolls
Extra .035 and .045 in. (0.9 and 1.2 mm) contact tips
Material Thickness Gauge

NOT INCLUDED

Shielding gas and safety equipment not included.
Welding wire
Push-Pull Gun (for welding aluminum)

Spool Gun (for welding aluminum)
Flux cored drive rolls (for welding with flux cored wire [FCAW])
Personal safety products (helmet, gloves)

PRODUCT LITERATURE

PROCESSES

MIG (GMAW)

Pulsed MIG (GMAW-P)

GENERAL SPECIFICATIONS

Title	Millermatic® 355 – MIG/Pulsed MIG Welder 208/240/460/575V
Industries Interests	Commercial Truck and Trailer Construction / Fabrication Education / Training Fabrication Maintenance and Repair – In Plant Manufacturing Transportation
Amperage	20 A – 400 A
Material Thickness	Aluminum 18 ga. (1.2 mm) – 1/2 in. (12.7 mm) Mild Steel 22 ga. (0.6 mm) – 1/2 in. (12.7 mm)
Weldable Metals	Aluminum Specialty Metals Stainless Steel Steel
Input Voltage	208 V 220/230/240 V 460 V 575 V
Input Phase	1- and 3-Phase
Current Type	DC
Max Open Circuit Voltage	90 VDC
Wire Feed Speed	1.3 m/min – 20 m/min 50 IPM – 800 IPM
Wire Diameter	Aluminum 0.035 in. – 0.047 in. Aluminum 0.9 mm. – 1.2 mm. Metal-Core 1.2 mm. – 1.3 mm. Metal-Core 0.045 in. – 0.052 in. Stainless 0.023 in. – 0.045 in. Stainless 0.6 mm. – 1.2 mm. Solid Steel 0.9 mm. – 1.2 mm. Solid Steel 0.035 in. – 0.045 in. Flux Cored 0.035 in. – 0.045 in. Flux Cored 0.9 mm. – 1.2 mm. Silicon Bronze 0.030 in. – 0.035 in. Silicon Bronze 0.8 mm – 0.9 mm.
Spool Size	12 in. (305 mm)
Portability	Running Gear / Cart (Optional)
Weld Output	CV
Net Width	13.75 in
Net Height	19.25 in
Net Length	26.25 in
Net Weight	99 lbs
Warranty	3 Years Miller’s True Blue Warranty
