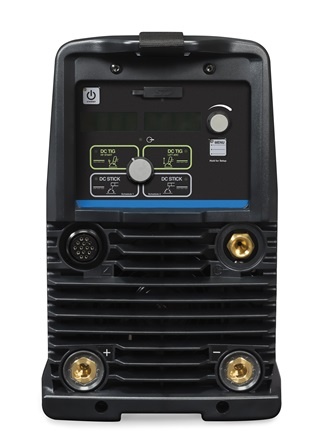

Miller Maxstar® 210 120-480 V
$4,766.00
Industry standard – Miller Electric pioneered the Maxstar-type market, now we’ve perfected it. The Maxstar 210 Series provides a solution for a variety of needs; from simple to fully automated.
Description
PROCESSES
TIG (GTAW)
Stick (SMAW)
TIG DC (GTAW-DC)
Pulsed TIG (GTAW-P)
| Title | Maxstar® DX 210 120-480 V |
|---|---|
| Material Thickness | : 0.002 in. (0.06 mm) – 1/4 in. (6.4 mm) |
| Weldable Metals | Specialty Metals Steel Stainless Steel |
| Input Voltage | 110/115/120 V 208 V 220/230/240 V 380/400 V 460/480 V |
| Input Phase | 1- and 3-Phase |
| Input Hz | 50 / 60 Hz |
| Current Type | DC |
| Max Open Circuit Voltage | 80 VDC |
| Amperage Min | 1 A |
| Amperage Max | 210 A |
| Portability | Handle(s) Running Gear / Cart (Optional) Strap |
| Weld Output | CC |
| Net Width | 8.6 in |
| Net Height | 13.6 in |
| Net Length | 19.5 in |
| Net Weight | 38 lbs |
| Warranty | 3 Years Miller’s True Blue Warranty |
CERTIFICATIONS
- Maxstar® 210 DX
- 8 ft. (2.4 m) primary cord
- Adjustable shoulder strap
- (2) 50 mm Dinse style connectors
NOT INCLUDED
- TIG torch adapter
