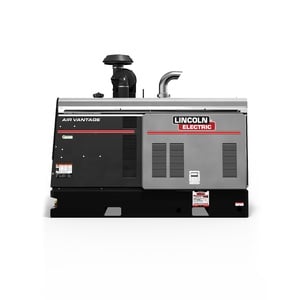

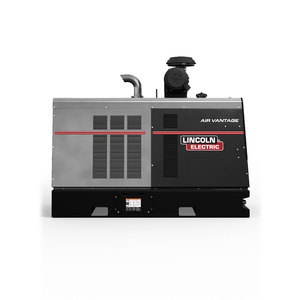

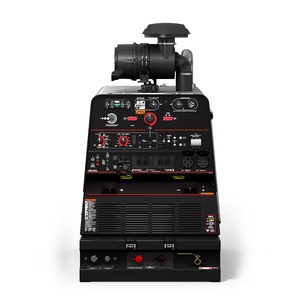

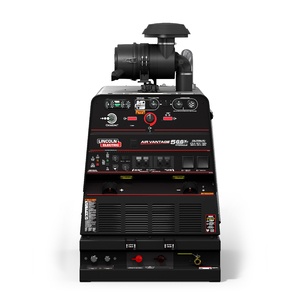

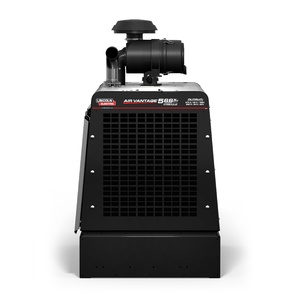

Lincoln Electric Air Vantage 566X Hydraulic (Deutz®) (T4F Compliant)
$58,108.00
Lincoln Electric Air Vantage 566X Hydraulic (Deutz®) (T4F Compliant)
Discover the Lincoln Electric Air Vantage 566X, a reliable hydraulic power generator designed for heavy-duty tasks. Powered by a durable Deutz engine and compliant with T4F emission standards, this generator ensures efficient and environmentally responsible operation. Ideal for construction, maintenance, and remote locations, its user-friendly design and stable power output make it suitable for professionals and less experienced users alike. Upgrade your projects with the trusted performance and mobility of the Air Vantage 566X.
Description
Lincoln Electric Air Vantage 566X Hydraulic (Deutz®) (T4F Compliant)
The Ultimate Utility Machine
The Air Vantage 566X Hydraulic is the ultimate utility machine. This versatile and powerful machine boasts a 575 amp welder, 20 kW generator, 60 cfm air compressor, and 10 gpm hydraulic pump to combine as a truly epic 4-in-1 workhorse. Suited for the most challenging job sites, the rugged Air Vantage 566X Hydraulic can handle a wide array of unique tasks from heavy-duty carbon arc gouging, powering industrial tools, or running a hydraulic crane. Now better than ever, the machine features CrossLinc® Technology to provide welders with greater control at the arc to help improve safety, productivity, and quality. Select this multifunctional workhorse for your next job!
Product Highlights
Multifunction Machine
- Welder – IEC rated at 575 amps of welding current to tackle numerous welding and carbon arc gouging applications
- Generator – 20 kW of continuous three phase power to run industrial tools such as plasma cutters, pumps, or inverter welders
- Air Compressor – 60 cfm @ 100 psi of compressed air powered by VMAC®
- Hydraulic Pump – 10 gpm @ 3000 psi of hydraulic capability to operate service truck cranes, grinders, and boring tools
CrossLinc® Enabled¹
- Allows communication through a standard weld cable to enable voltage or current control at the arc without a control cable
- Helps to improve safety, quality, and productivity with less trips to the power source and reduced jobsite clutter
- Utilizes True Voltage Technology™ (TVT) to compensate for voltage drop to further improve operations
Multi-Process Welding
- Select one of five basic process modes including CC-Stick, Downhill Pipe, DC Touch Start TIG®, CV-Wire, or Arc Gouging mode, which maximizes output for up to 3/8 in. (9.5 mm) carbon rods
Advanced Arc Performance
- Expanded welding capabilities with customized modes for stainless, aluminum, and steel as well as advanced SAW and orbital pipe modes²
- Pulse welding capability for better arc control in out-of-position work and low heat input for critical welds²
- Enhanced gouging performance prevents the engine from stalling, resulting in smooth material removal
- Minimized spatter for stick or pipe welding
Reliable Operations
- Lab tested, field proven ruggedness and durability
- Engineered for outdoor use in the harshest environments
- Encapsulated GFCIs, stainless steel paneling, and potted PC boards for added protection and inceased reliability
Industrial Diesel Engine
- 4 cylinder, 65.7 hp, turbocharged Deutz® diesel engine runs smooth and quiet
- Excellent cold-weather starting and high altitude operation
- Standard engine gauges allow you to monitor performance at a glance
- Tier 4 Final Compliant to deliver a 90% reduction in particulate and nitrous oxide emissions
- 25 gal. (94.6 L) fuel tank for longer running time
(1) Requires CrossLinc enabled wire feeder or CrossLinc remote
(2) Requires ArcLink Communications accessory
Changing The Name of The GameAir Vantage 566X Hydraulic Diesel Engine Driven Welder Product Info
| NET WEIGHT | 1800.00 (816.48 kg) |
| DIMENSIONS (H X W X L) | 42 in x 32.9(3) in x 69 in (1067 mm x 836 mm x 1753 mm) |
| RATED OUTPUT @ 104° (40°C) | IEC Rating – 575A / 43V / 100% Max Rating – 600A / 40V / 60% |
| OUTPUT RANGE | CC-Stick: 30 – 600 Amps Downhill Pipe (CC): 40 –350 Amps Touch Start TIG: 20 – 350 Amps CV-Wire: 10 – 45 Volts Arc Gouging: 60 – 600 Amps |
| OPEN CIRCUIT VOLTAGE | 70 Max OCV @ 1800 RPM |
| AC GENERATOR AUXILIARY POWER(1) | Single Phase: 12 kW Continuous, 120/240V @ 60 Hz Three Phase: 20 kW Continuous, 240V @ 60 Hz |
| AUXILIARY RECEPTACLES(2) | NEMA 5-20R (120V / 20A / 1~) NEMA 14-50R (120/240V / 50A / 1~) NEMA 15-50R (240V / 50A / 3~) |
| ENGINE MODEL | Deutz® TD2.9L4(4) EPA Tier 4 Final Compliant |
| ENGINE DESCRIPTION | 4 Cylinder 65.7 hp (49 kW) Turbocharged Water Cooled Diesel Engine |
| OPERATING SPEEDS (RPM) @ 65.7 HP | High Idle: 1800, Low Idle: 1525 |
| DISPLACEMENT | 178 cu. in (2.9 L) Bore x Stroke – 3.62 in x 4.33 in (92 mm x 110 mm) |
| CAPACITIES | Fuel: 25 US gal (94.6 L) Oil: 2.25 US gal (8.5 L) Cooling System: 2.5 US gal (9.5 L) |
| COMPRESSOR MODEL | VMAC®(5) S700162 |
| COMPRESSOR DESCRIPTION | Belt-Driven Rotary Screw |
| DELIVERY | High Idle – 60 cfm @ 100 psi (1.7 cmm @ 6.9 bar) |
| MAXIMUM SYSTEM PRESSURE | 150 psi (10.3 bar) |
| COMPRESSOR PROTECTION | Safety Relief Valve: 200 psi (13.8 bar) High Temperature Automatic Shutdown: 290 °F (143 °C) |
| COMPRESSOR CAPACITIES | Compressor Oil: 1.1 gal (4.0L)(6) |
| HYDRAULIC PUMP MODEL | Casappa® PHP20.16 |
| HYDRAULIC PUMP DESCRIPTION | Cast Iron Gear Belt-Driven with 12 Volt Electro-clutch |
| OUTPUT AT HIGH IDLE | 10 gal/min @ 3000 psi (37.9 L/min @ 20.7 Mpa) |
| INLET FITTING CONNECTION | SAE12, 37° JIC Male Flare |
| OUTLET FITTING CONNECTION | SAE10, 37° JIC Male Flare |
(1) When welding, available auxiliary power will be reduced. Output voltage is within +/- 10% at all loads up to rated capacity.
(2) Circuits cannot be wired in parallel to operate the same device.
(3) Includes width of door. Base width is 31.6” (803 mm)
(4) Engine warranted separately by engine manufacturer.
(5) Compressor warranted separately by compressor manufacturer.
(6) VMAC® synthetic compressor oil recommended for best operation results, or oil approved by VMAC®
Net Weight: Machine only – Does not include fuel.
