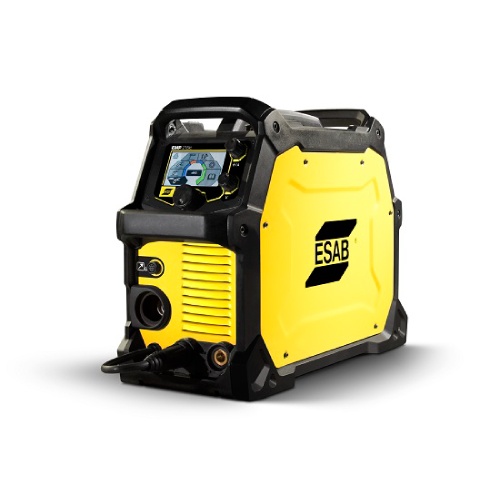

Description
- True multi-process performance for best-in-class MIG, Flux-Cored, Stick, including 6010 Stick electrodes, and Lift TIG welding with Rebel EMP 215ic
- Exclusive sMIG (“smart MIG”) feature continuously learns and adapts to the operator’s welding technique to provide a stable arc and superior, repeatable welds; increases productivity for the experienced welder, and reduces training time for novice welders

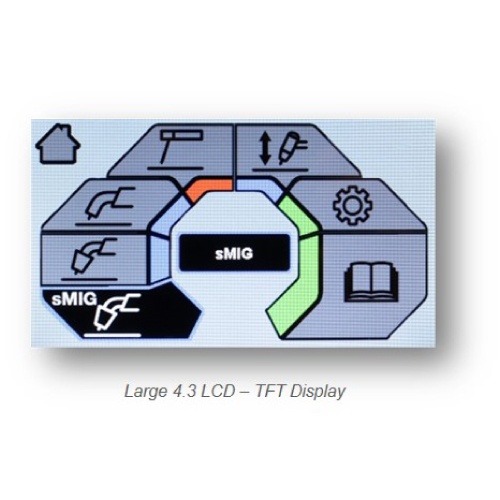

- Innovative display has larger display screen and higher pixel density to provide a more clear view of the TFT screen than other light industrial welders; loaded with exclusive features: on-demand availability of the user’s manual, listing of spare parts – all in multiple languages
- Unique, five-handle roll cage industrial design and unibody steel construction in a lightweight, highly portable unit; 3-year handle-to-handle warranty
- Rebel Series models come ready to weld out of the box with Professional Grade TWECO accessories and Victor gas regulator. Shielding gas not included.
Specifications
| Standards |
CSA E60974-1-00, IEC 60974-1 |
Arc Gun Consumables
| Use With Welding Material |
9.5 mm (3/8 in.) |
| Conditional Statement |
Max Plate Thickness |
Arc Holders Clamps & Misc
Power Specifications
| Conditional Statement |
MIG Welding |
|
| Max Output (A) |
|
240 A |
| Max Output (V) |
|
26 V |
| Open Circuit Voltage |
|
68 VDC |
| Protection Class |
|
IP23S |
| Voltage Steps Minimum |
|
10 |
| Voltage Steps Maximum |
|
20 |
| Voltage Range (V) |
10-26 V |
90-270 V |
| Current Range(A) |
|
5 – 150 A (120 V), 5 – 240 A (230 V) A |
| Supply Plug |
|
230 V, NEMA 6-50P |
Input Voltage
| Voltage |
120; 208/230 V |
| Phase |
1 |
| Frequency |
50/60 Hz |
Welding Output
| Model |
Duty Cycle |
Output Current |
Output Voltage |
Welding Process |
| 120 V |
40 % |
90 A |
23.6 V |
Stick (SMAW) |
| 120 V |
40 % |
130 A |
15.2 V |
TIG (GTAW) |
| 120 V |
20 % |
130 A |
20.5 V |
MIG (GMAW) |
| 230 V |
25 % |
180 A |
27.2 V |
Stick (SMAW) |
| 230 V |
30 % |
180 A |
17.2 V |
TIG (GTAW) |
| 230 V |
25 % |
205 A |
24.3 V |
MIG (GMAW) |
Dimensions
| Length |
584 mm (23 in.) |
| Width |
229 mm (9 in.) |
| Height |
406 mm (16 in.) |
Wire Feeder Specifications
| Metal |
Stainless Steel |
| Wire Diameter |
0.8-0.9 mm (.030-.035 in.) |
| Metal |
Aluminum |
| Wire Diameter |
0.8-1.2 mm (.030-.045 in.) |
| Metal |
Mild Steel |
| Wire Diameter |
0.6-0.9 mm (.024-.035 in.) |
| Metal |
Flux Cored |
| Wire Diameter |
0.8-1.2 mm (.030-.045 in.) |
| Max Spool Diameter |
100 & 200 mm (4 & 8 in.) |
| Wire Feed Speed |
1.5-12.1 m/min (59-476 in./min) |
Weight
